HPE iLO Licensing - Selecting the Right License

Support Center

HPE iLO license options overview

HPE iLO license product numbers (SKUs)

Access free HPE iLO web-based training

HPE iLO license options overview

HPE iLO Standard Features Support - iLOstandard features support is covered under the hardware warranty for users server.
HPE iLOSupport for Licensed Features - Purchasing one(1) and three (3) year support licenses refers to the length of the support agreement for licensed iLO features.When user register users license, HPE prepares a support agreement. Once the support agreement expires, user can continue to use licensed features. However, support for those licensed features is not available. User have the option to renew licensed features support.
HPE iLO licenses do not expire. They are valid forthe life of the server on which they are installed.
HPE iLO license options vary by server platform and sales region. For a detailed list of options available for a specific product number, see Click here to view the HPE iLO License Product Numbers (SKUs) .

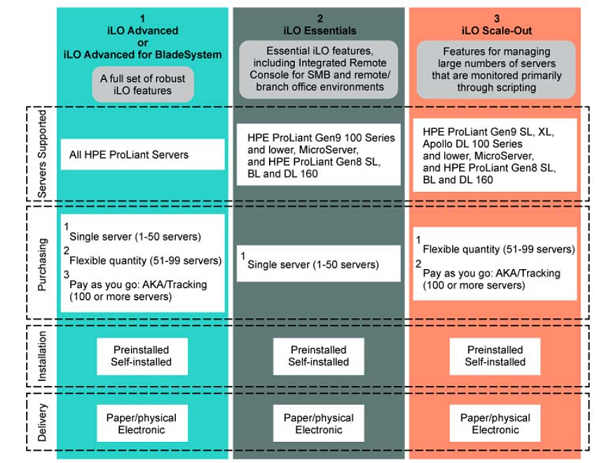

User can use HPE iLO license decision process to help user select the right HPE iLO license for users business needs. The figure shows the purchasing, installation, delivery and supportoptions that determine users license product number (SKU).

To begin selecting users license:

To determine which number combination is listed for the license type, server support and purchasing optionthat best meets users needs, review the options shown in HPE iLO license decision process.

Example

If user want:
- An iLO Advanced license
- For any HPE ProLiant server model
- For a single server
Users selection is 1-1.
In the table following the figure, use the link that corresponds to users selection from Step 1 to go to Click here to view the HPE iLO License Product Numbers (SKUs) and determine the license product number thatmatches users installation, delivery and support requirements.

The following lists where in the ( Click here to view the iLO license product numbers (SKUs) tables ) to find the product number SKU associated with the license options user selected in the Purchasing row in HPE iLO license decision process.

If users Purchasing selection is:	Find users product number (SKU) here:
1-1	For a non-blade server: Click here to view the Advanced Single-server . For a single Blade System: Click here to view the Advanced for Blade System Single-server . For up to eight Blade Systems: Click here to view the Advanced for Blade System Eight-server .
1-2	For non-blade servers: Click here to view the Advanced FlexibleQuantity . For Blade System: Click here to view the Advanced for Blade System Flexible Quantity .
1-3	For non-blade servers: Click here to view the Advanced Payas user go volume (AKA/Tracking) . For BladeSystem: Click here to view the Advanced for Blade SystemPay as user go volume (AKA/Tracking) .
2-1	Click here to view the Essentials Singleserver .
3-1	Click here to view the Scale-Out FlexibleQuantity .
3-2	Click here to view the Scale-OutPayas user go volume (AKA/Tracking) .

HPE iLO license product numbers (SKUs)

The following tables list available HPE iLO license product numbers (SKUs) and the delivery, support and registration options available for each.

User are entitled to a one (1) or a three (3) year support contract on licensed features.
After users one (1) or three (3) year support contract expires, users HPE iLO licensed features still work and are enabled. However, user will not have HPE support for those licensed features.
Users licenses do not expire. They are valid for the life of the server on which they are applied.
HPE iLO standard features are supported under theserver hardware warranty.

Advanced - Single-server
Product number	Delivery	Support for licensed features^1,2	HPE factory installed/ preinstalled?	Description
512485-B21	Physical	1-year24x7	yes	HPE iLO Advanced with 1-year 24x7 Technical Support Single-Server License ³
BD505A	Physical	3-year 24x7	yes	HPE iLO Advanced 1 Server License with 3-year 24x7 Technical Support Single-Server License ³
E6U59ABE	Electronic	1-year24x7	no	HPE iLO Advanced 1 Server with 1-year 24x7 Technical Support Electronic License To Use (E-LTU)
E6U59ABE 0D1	Electronic	1-year24x7	yes	HPE iLO Advanced 1 Server with 1-year 24x7 Technical Support E-LTU
E6U64ABE	Electronic	3-year24x7	no	HPE iLO Advanced 1 Server with 3-year 24x7 Technical Support E-LTU
E6U64ABE 0D1	Electronic	3-year24x7	yes	HPE iLO Advanced 1 Server with 3-year 24x7 Technical Support E-LTU

Advanced - FlexibleQuantity
Product number	Delivery	Support for licensed features^1,2	HPE factory installed/ preinstalled	Description
512486-B21	Physical	1-year24x7	no	HPE iLO Advanced with 1-year 24x7 Technical Support Flexible Quantity License
BD506A	Physical	3-year 24x7	no	HPE iLO Advanced Flexible Quantity License with 3-year 24x7 Technical Support

Advanced Payas user go volume (AKA/Tracking)
Product number	Delivery	Support for licensed features^1,2	HPE factory installed/ preinstalled?	Description
512487-B21	Physical	1-year24x7	no	HPE iLO Advanced with 1-year 24x7 Technical Support Tracking License
BD507A	Physical	3-year 24x7	no	HPE iLO Advanced with 3-year 24x7 Technical Support Tracking License

Essentials Singleserver
Product number	Delivery	Support for licensed features^1,2	HPE factory installed/ preinstalled?	Description
BD775A	Physical	1-year 24x7	yes	HPE Integrated Lights-Out (iLO)Essentials with 1-year 24x7 Technical Support Single-Server License
BD774A	Physical	3-year 24x7	yes	HPE iLO Essentials with 3-year 24x7 Technical Support Single-Server License
E6U62ABE	Electronic	1-year24x7	no	HPE iLO Essential with 1-year 24x7 Technical Support E-LTU
E6U62ABE 0D1	Electronic	1-year24x7	yes	HPE iLO Essential with 1-year 24x7 Technical Support E-LTU
E6U61ABE	Electronic	3-year24x7	no	HPE iLO Essential with 3-year 24x7 Technical Support E-LTU
E6U61ABE 0D1	Electronic	3-year24x7	yes	HPE iLO Essential with 3-year 24x7 Technical Support E-LTU

Scale - Out FlexibleQuantity
Product number	Delivery	Support for licensed features ^1,2	HPE factory installed/ preinstalled?	Description
BD778A	Physical	1-year 24x7	no	HPE iLO Scale-Out with 1-year 24x7 Technical Support Flexible Quantity License
BD776A	Physical	3-year 24x7	no	HPE iLO Scale-Out with 3-year 24x7 Technical Support Flexible Quantity License
BD778AAE	Electronic	1-year 24x7	no	HPE iLOScale-Out with 1-year 24x7 Technical Support Flexible Quantity E-LTU
BD776AAE	Electronic	3-year 24x7	no	HPE iLOScale-Out with 3-year 24x7 Technical Support Flexible Quantity E-LTU

Scale - Out Payas user go volume (AKA/Tracking)
Product number	Delivery	Support for licensed features ^1,2	HPEfactory installed/ preinstalled?	Description
BD779A	Physical	1-year 24x7	no	HPE iLO iLO Scale-Out with 1-year 24x7 Technical Support Tracking License
BD777A	Physical	3-year 24x7	no	HPE iLO iLO Scale-Out with 3-year 24x7 Technical Support Tracking License

Advanced for Blade system Single - Server
Productnumber	Delivery	Support for licensed features ^1,2	HPEfactory installed/ preinstalled?	Description
512488-B21	Physical	1-year24x7	yes	HPE iLO Advanced for BladeSystem with 1-year 24x7 Technical Support Single-Server License³
BD502A	Physical	3-year 24x7	no	HPE iLO Advanced Blade1 Server License with 3-year 24x7 Technical Support
E6U60ABE	Electronic	1-year24x7	no	HPE iLO Advanced for BladeSystem with 1-year 24x7 Technical Support E-LTU
E6U60ABE 0D1	Electronic	1-year24x7	yes	HPE iLO Advanced for BladeSystem with 1-year 24x7 Technical Support E-LTU
E6U63ABE	Electronic	3-year24x7	no	HPE iLO Advanced for BladeSystem with 3-year 24x7 Technical Support E-LTU
E6U63ABE 0D1	Electronic	3-year24x7	yes	HPE iLO Advanced for BladeSystem with 3-year 24x7 Technical Support E-LTU

Advanced for Blade system Eight - Server
Product number	Delivery	Support for licensed features ^1,2	HPEfactory installed/ preinstalled?	Description
512489-B21	Physical	1-year24x7	no	HPE iLO Advanced for BladeSystem with 1-year 24x7 Technical Support Eight Server License

Advanced for BladeSystem - Flexible Quantity
Product number	Delivery	Support forlicensedfeatures^1,2	HPE factory installed/preinstalled?	Description
512490-B21	Physical	1-year 24x7	no	HPE iLO Advanced for BladeSystem with1-year 24x7 Technical Support Flexible Quantity License
BD503A	Physical	3-year 24x7	no	HPE iLO Advanced Blade with 3-year 24x7 Technical Support Flexible Quantity License

Advanced for Blade system Pay as user go volume (AKA/Tracking)
Product number	Delivery	Support for licensed features ^1,2	HPEfactory installed/ preinstalled?	Description
512491-B21	Physical	1-year24x7	no	HPE iLO Advanced for BladeSystem with 1-year 24x7 Technical Support Tracking License
BD504A	Physical	3-year 24x7	no	HPE iLO Advanced for BladeSystem with 1-year 24x7 Technical Support Tracking License

User are entitled to a one (1) or a three (3) year support contract on licensed features. After users one (1) or three (3)year support contract expires, users iLO licensed features still work and are enabled. However, user will not have HPEsupport for those licensed features. Users licenses do not expire. They are valid for the life of the server on which theyare applied.
iLO standard features and firmware updates are supported under the Server Hardware Warranty Contract.
License registration is not available in the Americas (AMS) and Asia Pacific or Japan (APJ) regions for these licenses. Users license key is printed on the installations instructions that are shipped with users order. Retain this key for users records and to obtain support.

iLO firmwareupdates are available at HPE iLO website. Click here to access the HPE iLO 4 (iLO 4) .

Access free HPE iLO web-based training

Users purchase of an HPE iLO license entitles user to free web-based training about advanced iLO features and how to use them.

To access users free HPE iLO training, Click here to view the HPE iLO Advanced environment training .
To access the full HPE ProLiant training curriculum, Click here to view the HPE ProLiant training curriculum .
